Services

1 - POC design

2 - Prototype design

3 - CAD

4 - Consulting

5 - Manufacturing

We design a solution which implement criticals functionnalities to reduce the project risk, this step is important to obtain well defined specifications.

We design a prototype which can be fully integrated to the final product

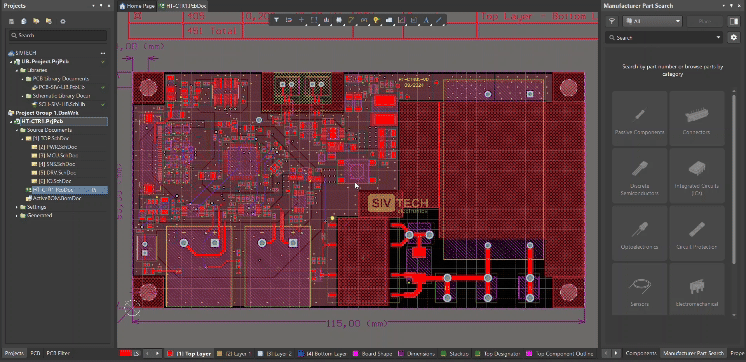

We provide a CAD service on Altium Designer

We integrate your team during peak periods

We support you during discussions with EMS (Electronics Manufacturing Services) to prepare and follow your production

SIVTECH is a young human sized company, which provides electronic design services. The main goal of the company is to present to its customers high quality services with three main values : Rigor, responsiveness and enthusiasm.

1800W PID heating regulator

We developped ...

Specification :

• 220-260 VAC input

• PID algorithm embedded in MCU

• Average temperature measurement with 2 thermocouple channels.

• Power Solid State Relay (SSR) drive circuit (external SSR 1800W heating element capability)

• 10 W AC motor control.

• 0.5 W DC fan control

• Temperature measurement for regulation 0 – 350 °C.

• Safety and self diagnostic features

• USB CDC remote control

• Remote HMI capability : 2 button and 5 LEDs

• Working temperature 0 – 70 °C

• Sector voltage insulation > 4 kVrms

• Main board dimension : 115 mm x 60mm x 21.5mm

Expertise

Architecture

Hardware

Software

Tests and documentation

Manufacture

• Specifications

• Technology and component selection

• Cost estimation

• Analog circuits

• Digital circuits

• Power circuits

• Communication circuits

• Sensors interfaces

• Schematics and layout

• MCU embedded  C

• Utility software

• Tests plans

• Tests execution

• Tests reports

• Technical design notes

• Application notes

• Prototyping

• PCB manufacture management

• PCB assembly management
